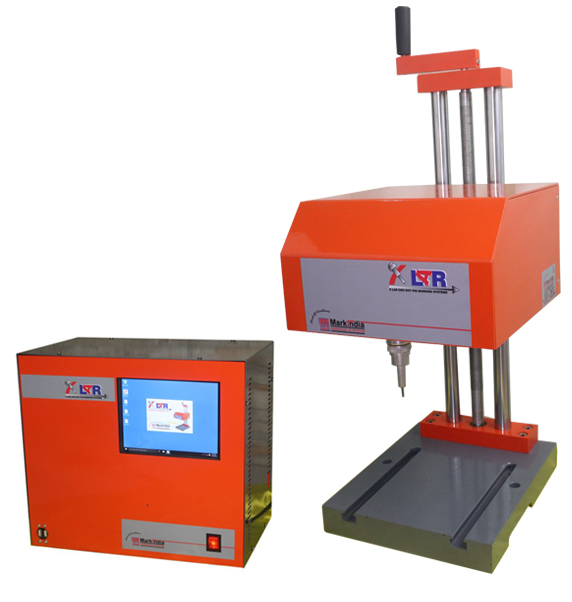

Pneumatic Standalone Table Top Dot Pin Markers

We, MarkIndia Marking Systems are Manufacturer, Supplier, Exporter of Pneumatic Standalone Table Top Dot Pin Markers and our setup is situated in Aurangabad, Maharashtra, India. This product is also known as Pneumatic Standalone Table Top Dot Peen Marking Machines etc. MarkIndia X-LAR CNC marking machines are designed based on Pneumatic technology addressing high speed marking. Pneumatic marking machines has faster operational time. With its Dot Peen marking technology user can achieve higher accuracy and fast production. The advanced technology take up X-LAR Marking machine at highest precision of marking. This is the perfect choice for consistent depth of marking on large number of components. A special stylus provided with XLAR marking machine, that marks upto 0.5 mm in soft steel component. Our all Dot Pin pneumatic marking machines are popular in all application areas that requires much faster and deep marking. The complete marking machine with built in electronics based, Suitable for 24 * 7 working. Requires computer with Serial Port. Requires compressed air supply for working. Versatile and suits most direct part marking applications.

Categories : Barcode Marking, Standalone XLar Controller, Desktop, Dot Peen Pneumatic, Small & Medium Component Marking

Specifications

• Standard Marking window : Std. 100mm X 100mm, or any custom built size is available.
• Column Height adjustment : 300mm Imprinting
• Power : 100 N
• Standard Stylus : 3 mm / 4 mm For Any Metal Marking
• Imprinting surface variance : 3mm to 5 mm. ( Long stylus also available)
• Marking Speed : Std. 2 char’s per sec. (* Depends on Application, 3 mm char ) 7 Inch Display with XLAR CNC Dot Pin Software (No External PC Required)

Requirement

• Electrical connection : 240V AC
• Air connection : up to 6 bar
• PC Required Configuration : Any Standard PC with Serial port.

Machine Constuction

• Machine Body : Aluminium with LM Guide ways.
• Machine Cover : Carbon Steel with powder coating.
• Colour of machine : Orange with Gray Column & Base. ( Custom Color Also Available)
• CNC Controller : 2 Axis X-LAR CNC Controller from MarkIndia Marking Systems.
• Drive : High Quality Stepper Motors.
• Packing : Air worthy packing.

Optional Accessories

• I/O Port : 10 Inputs & 10 Outputs for automatic Text Selection. End of marking O/P ( Marking Done Pulse), Marking Start Pulse, Rotary Device for Cirmcumferance Marking, Part Holding Fixtures, Auto Z Axis Control.
• Customization : Lot of Customize Accessories available for Dot Pin Marking Machines.
